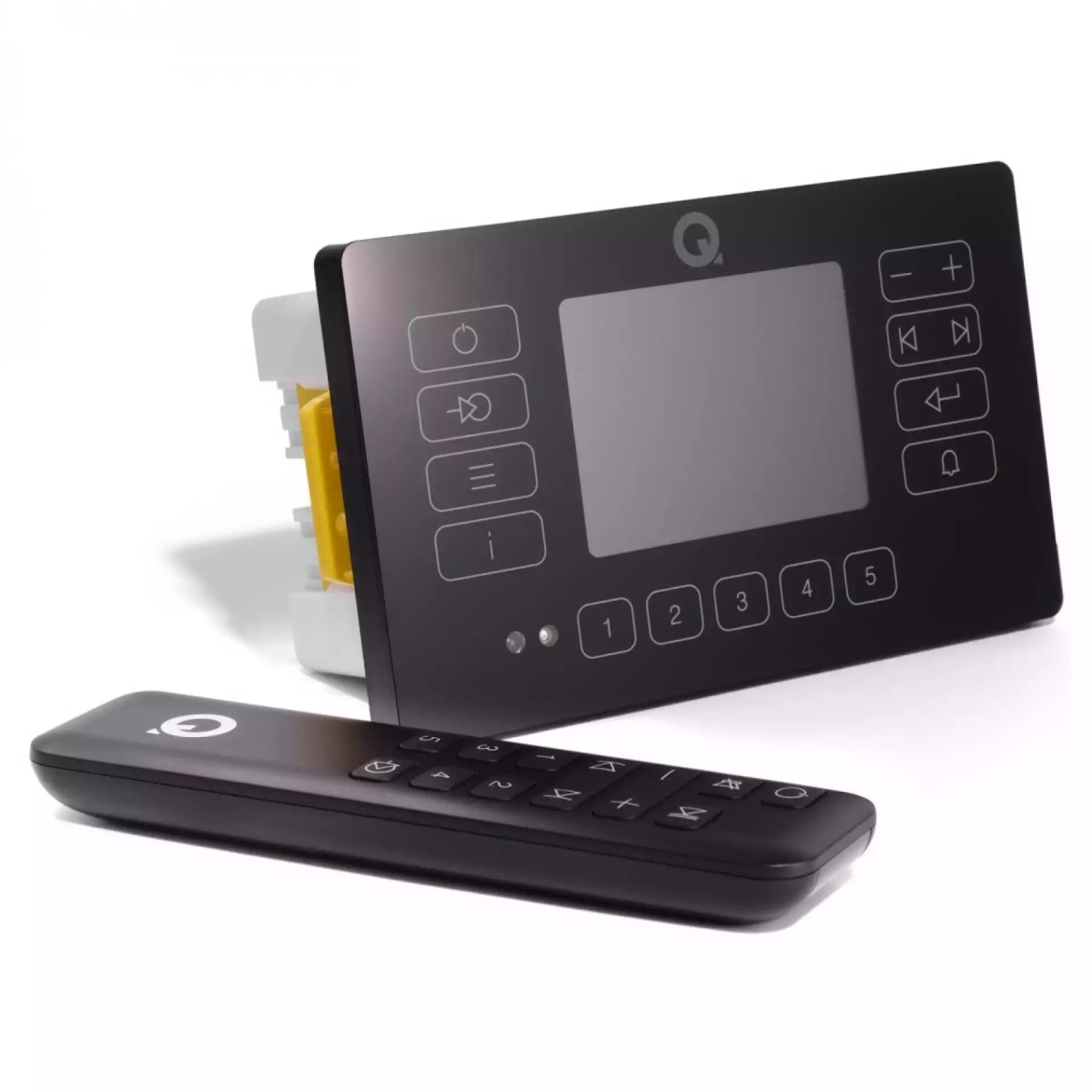

Q Acoustics E120 Bluetooth and DAB/FM Radio Black - Integrisano pojačalo

Q ACOUSTICS
57.480,00  RSD 62.280,00  RSD
47.900,00  RSD (bez PDV-a)
Q ACOUSTICS
Besplatna dostava
Kod proizvoda - SKU 16416

Opis

Easy fit, wireless music system
Built-in DAB and FM radio allows you to listen to your favourite stations
Wirelessly stream or connect sources including TV via analogue and digital sources
IP54 rating enables fitting in bathrooms and kitchens
Perfect for pairing with wall and ceiling speakers


Flexible placement options
The E120 system is designed for use around the home and is able to suit a wide variety of applications. It serves up 2 x 25W of power at 6ohms suitable for a variety of passive speakers and thanks to an IP54-rating is capable of being situated in bathrooms and kitchens where humidity and splashes are frequent. What's more, a waterproof remote control is included so you're free to control your music from the bath or with wet hands.


Suitable for TVs
On top of Bluetooth 5.0 compatibility for streaming and an integrated radio system, a host of digital and analogue connections enable use with TV systems to enhance your audio for more immersive movie nights and enjoyable viewing experiences. Audio output is configurable so you can output to a subwoofer, external power supply or even a second E120 system.

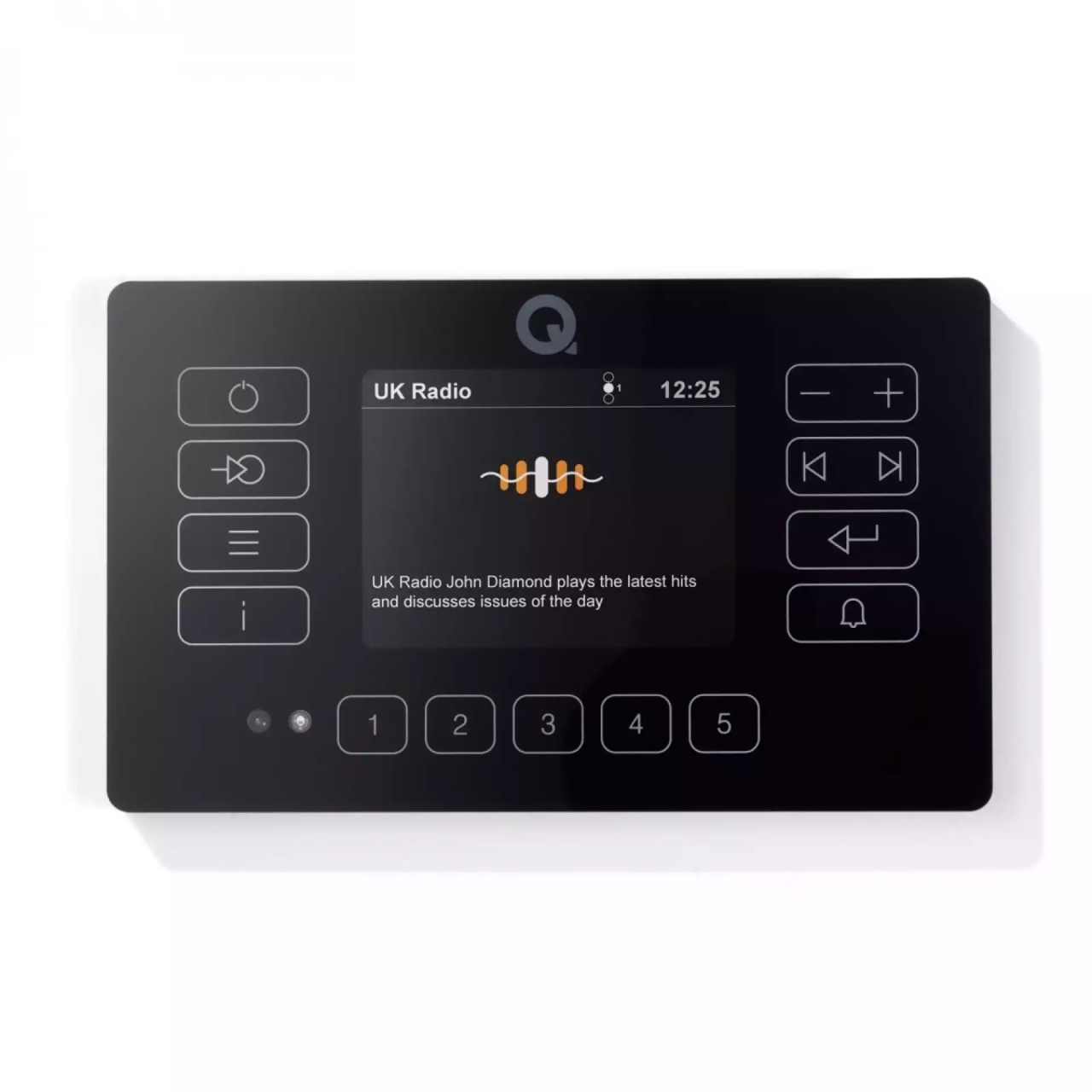

Touch control display
A 3.2" display offers sharp visual feedback of song information including artist and album name. Touch controls allow you to make quick manual adjustments and you can also manually change brightness levels. An internal light sensor allows automatic changing of levels making the E120 perfect for bedrooms so you can avoid background light whilst sleeping. The alarm function makes it possible for you to set alarms every single day, including 2 one-off alarm settings.



Features
Easy wall-mounting installation in any room including bathrooms and kitchens
High-quality built-in class D stereo amplifier serving up 25W of power per channel
Features Bluetooth 5.0 for wireless streaming of music from compatible devices
Built-in DAB+ and FM radio with one-touch presets
3.2-inch colour display with touch control, both a splashproof and full-size remote controls supplied
Boasts digital and analogue inputs for the connection of audio sources such as TV audio
Audio output suitable for a subwoofer for an immersive cinema experience
What's in the box
1x E120 control panel and system
2x 7M speaker cables
1x 5M power cable

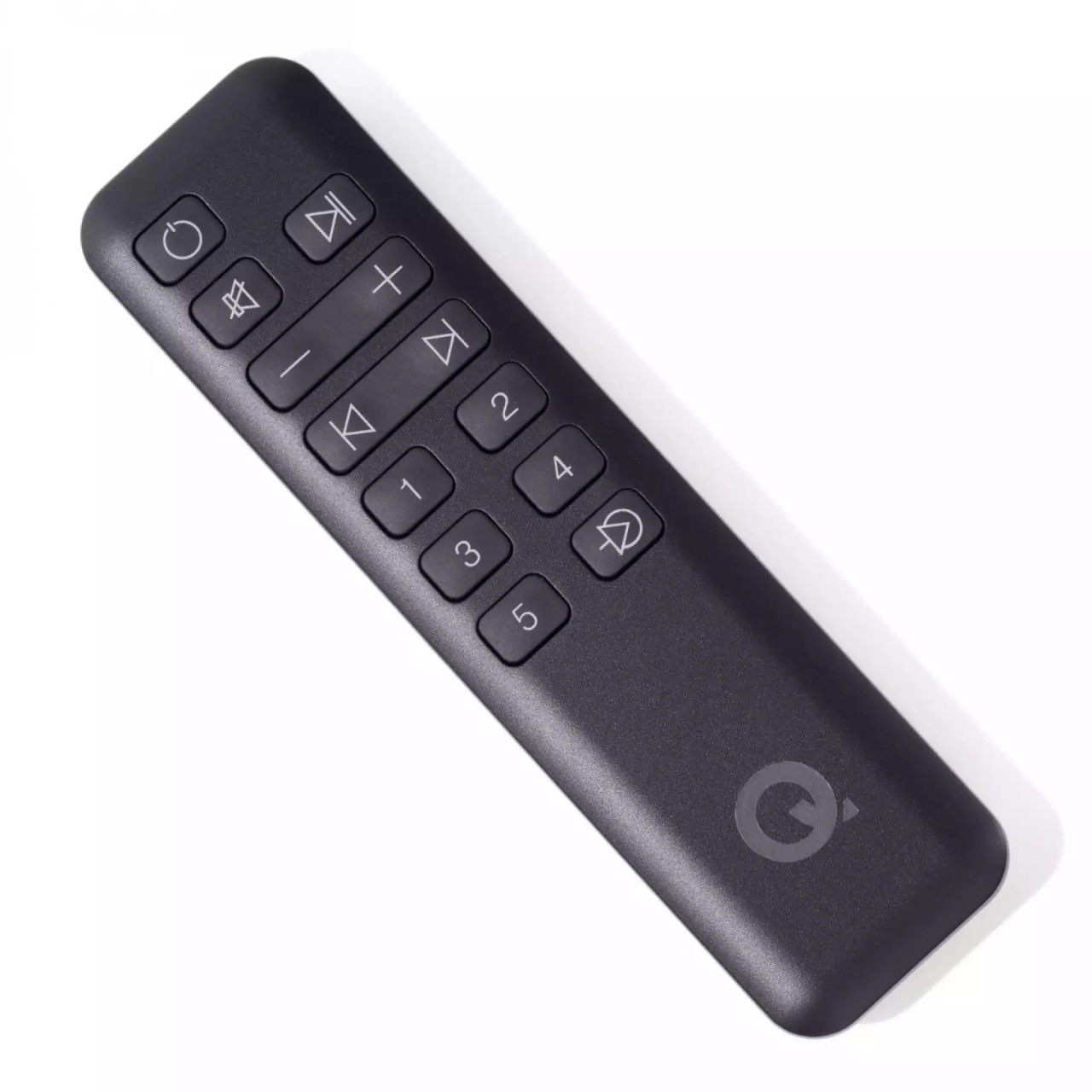

1x remote control
1x waterproof remote control
1x Power Supply (with EU and UK mains leads)
1x Indoor DAB/FM antenna
1x 3m antenna extension cable

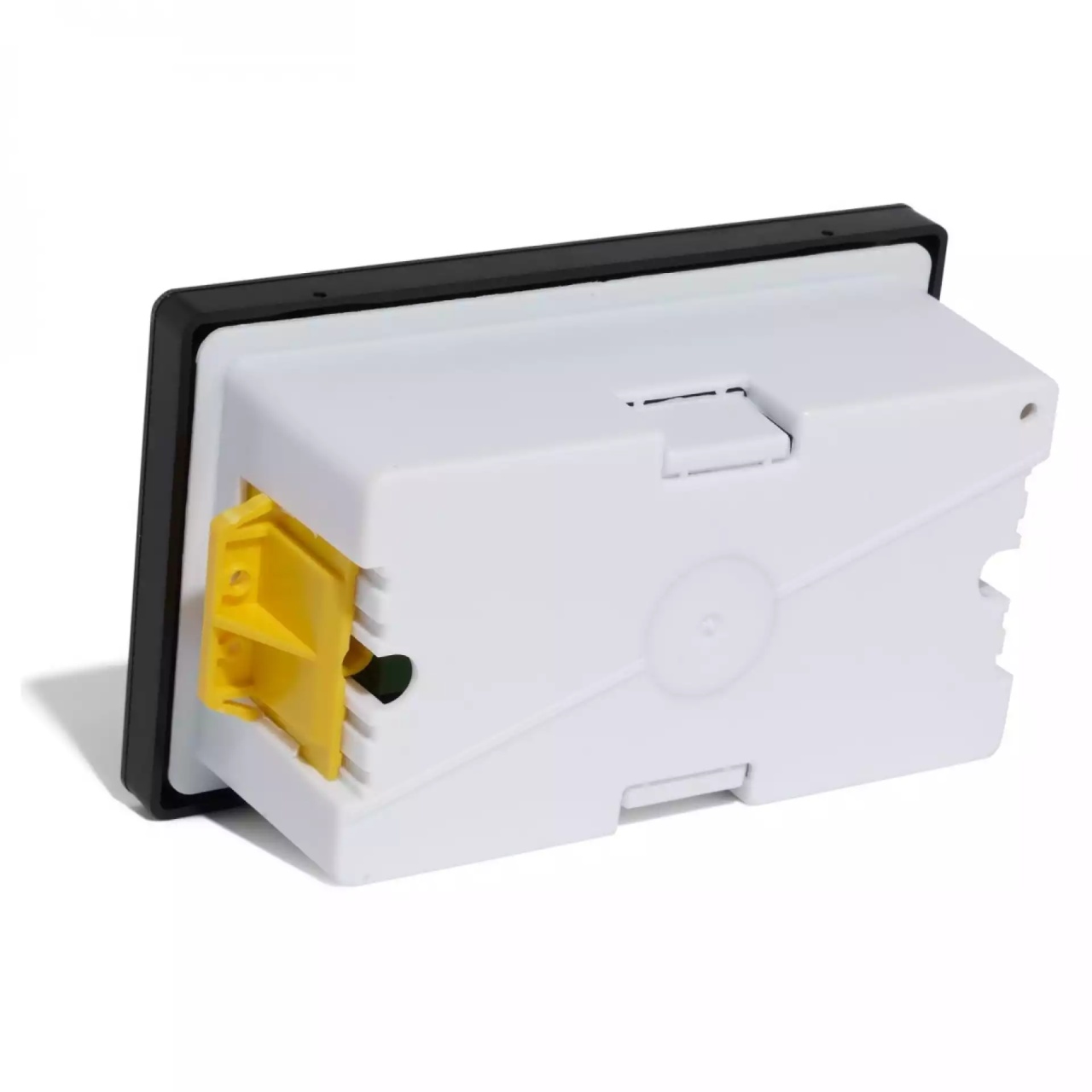

1x Backbox
1x quick start and installation manuals













































































Audio Sources



DAB / DAB+ / FM with RDS



Bluetooth



Version 5.0, A2DP



Analogue input



Type: 3.5mm stereo


Sensitivity: 350mV


Max level: 1.5V


Impedence: 10k ohm



Optical input



Type: mini TOSLIN


Resolution: 16bit 48kHz



Speaker outputs



Left & right, stereo or dual mono



Analogue output



Type: 3.5mm stereo


Modes: Fixed or variable


Max level: 670mV



Amplifier



Type: Class D


Continuous power: 2 x 25W @ 6ohm


THD: 0.07 @ 1W / 0.2 @ rated power


SNR: >75dB @ Rated power


Frequency response: 20Hz - 20kHz +/- 1dB



IP ratings



E120 wall panel: IP54


Splash proof remote: IP67



Control



Touch sensitive buttons


Infra-red remote control


Bluetooth AVRCP v1.6: Play, pause, skip, track, artist, album name



Menu languages



English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish



Alarms



x2 once, daily, weekdays, weekends



Power supply



Input: 100 - 240V AC 50/60 Hz


Output : 22V DC 1.5amps


Dimensions (HxWxD): 30mm x 50mm x 115mm



Power consumption



Typical: 10W


Standby: <1W


Deep standby: <0.5W



Wall panel



Net weight: 0.251kg


Dimensions (HxWxD): 91mm x 151mm x 33mm



Speaker cable supplied



Gauge 19 AWG


Lengths: 2 x 7m



Power cable supplied



Gauge: 16 AWG


Lengths: 5m


Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female



Product code



QI0120
