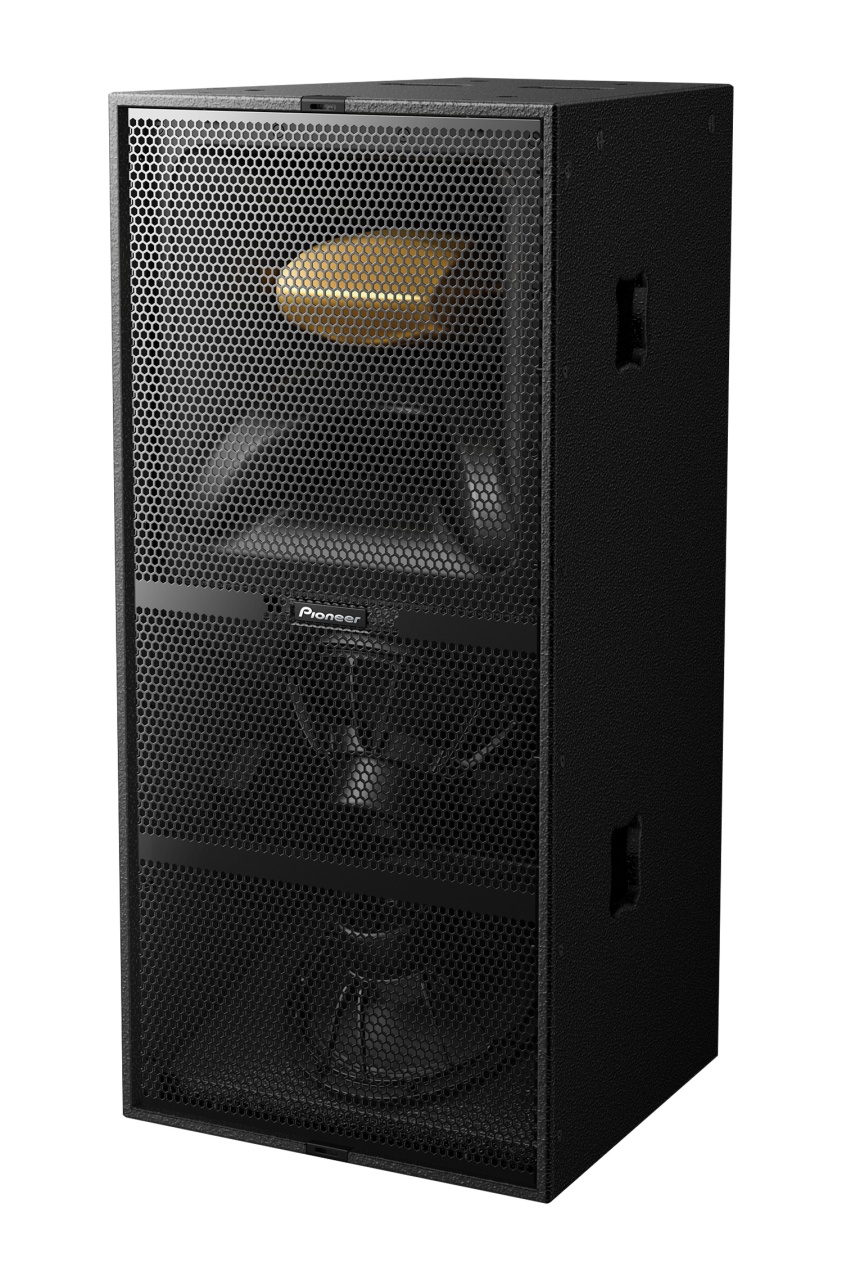

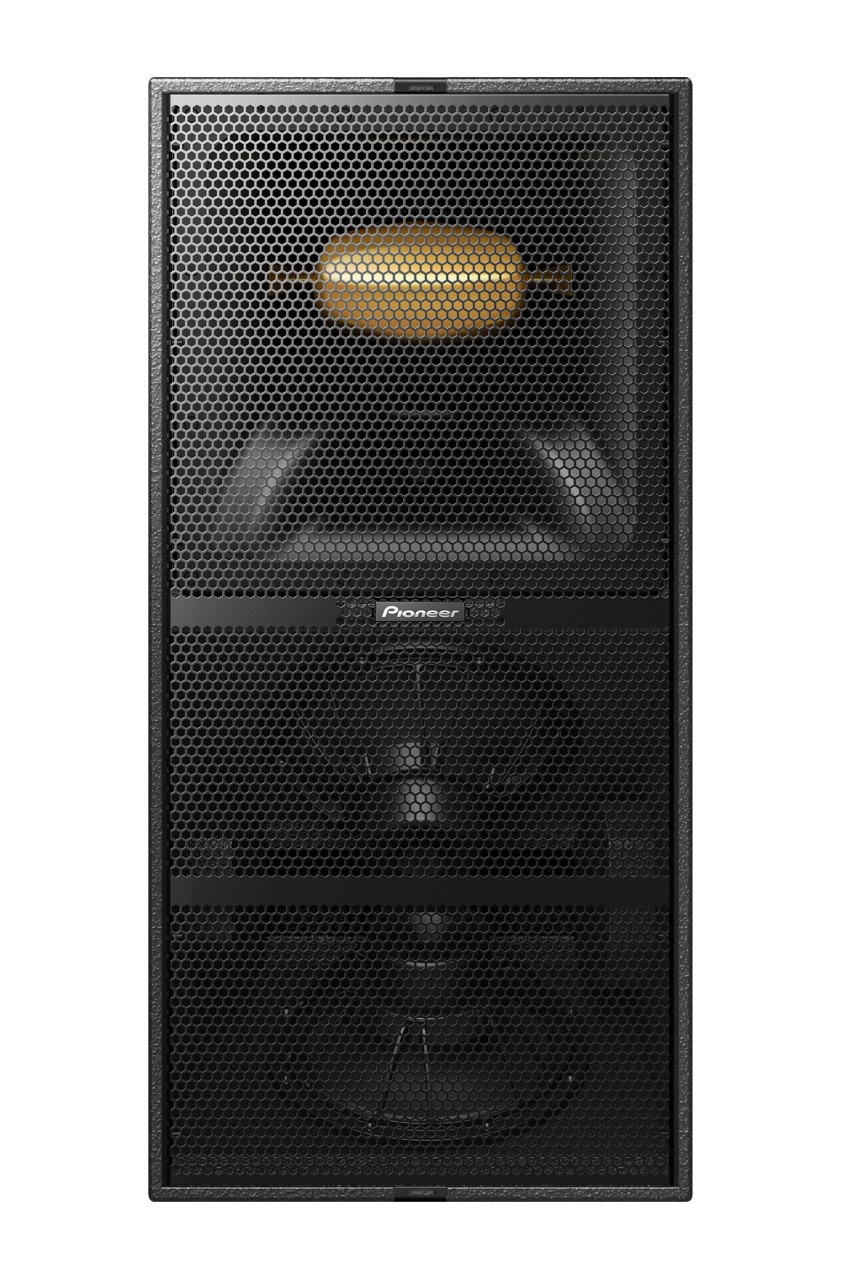

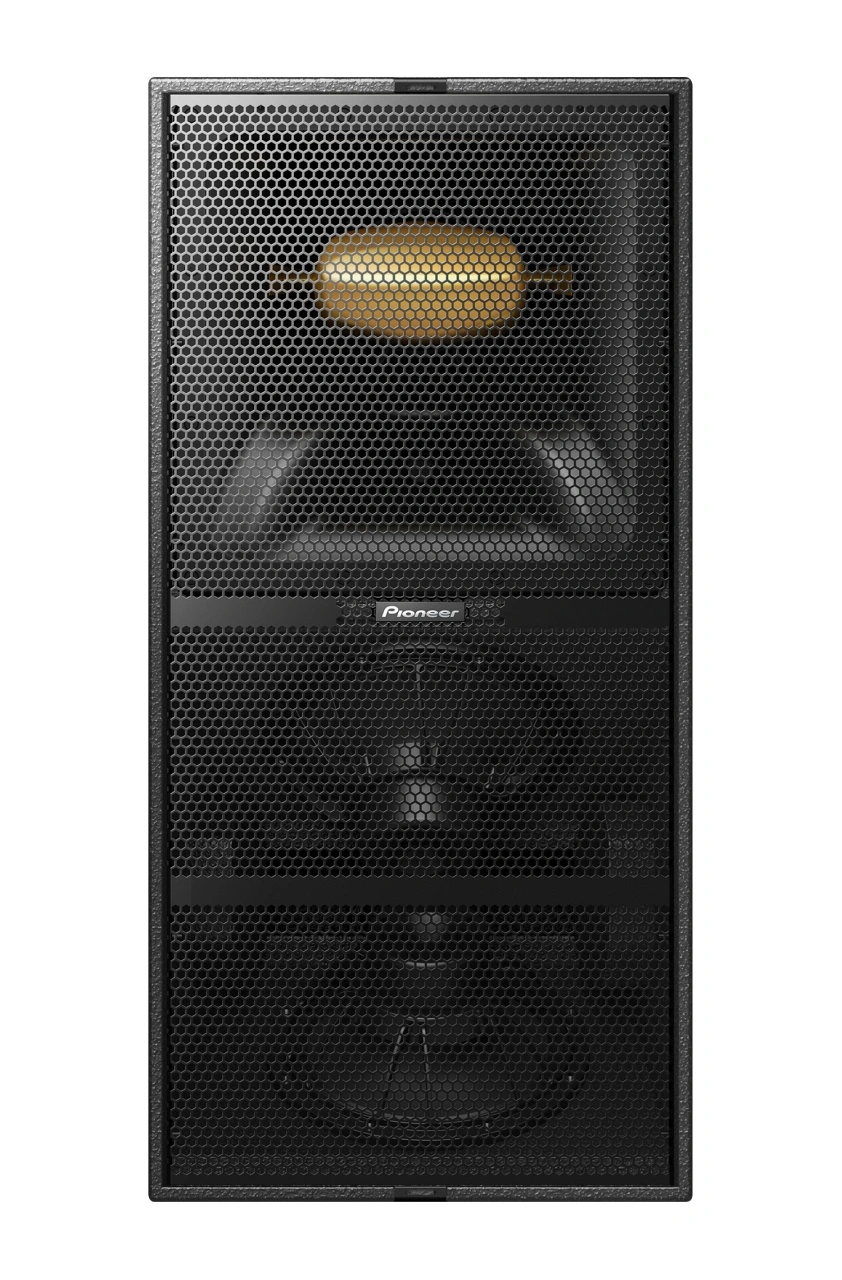

Pioneer XY-3B B-Stock

Opis

In the XY-3B, an 8-inch cone driver delivers clean and precise mid-range frequencies using Pioneer Pro Audio’s X-Phase system. A 1-inch compression driver produces crystal-clear HF which, thanks to the moulded Bi-horn, seamlessly blends with the mids. Two 12-inch drivers create tight, chest-pumping low mid.

Hardware
Enclosure Type: 3WAY Bi-amp loudspeaker
Enclosure: 15 mm birch plywood
Loudspeaker data
Transformer taps:

LF：12-inch neodymium cone driver x 2
MF：8-inch neodymium cone driver
HF：1-inch exit neodymium compression driver
Power Handling:

LF：1200 W(RMS), 2400 W(Program)
MHF：200 W(RMS), 400 W(Program)
Power Handling AES:

LF：133 dB(cont.), 139 dB(peak)
MHF：130 dB(cont.), 136 dB(peak)
Dispersion: speakON® NL4 x 2
System data
Frequency response: 55 Hz～17 kHz
Sensitivity (1W/1m): LF：102 dB, MHF：107 dB
Nominal Impedance: LF：4Ω, MHF：8Ω
Dimensions / Weight
Dimensions ( W x H x D): 530 mm x 1080 mm x 540 mm
Weight: 57.6 kg
