Opis
Powerful Amplification
Fill your home with rich, enveloping waves of sound. This high-end integrated amplifier contains a highly capable power supply (500+ VA toroidal transformer) that allows it to provide the right amount of power to your loudspeakers — and deliver premium audio performances without distortion.
№5805 Feature
Detailed Digital Audio
Discover new details in your digital music, from hidden harmonies to whispered cues. The № 5805 includes a premium Precision Link II Digital-to-Analog Converted (DAC) that accurately reproduces audio signals and minimizes noise, so you can experience outstanding audio quality and connect to your music on a deeper level.
№5805 Feature
Extraordinary Analog Audio
Mark Levinson’s proprietary Pure Path circuit design maximizes audio signal integrity with exceptional accuracy and sonic clarity from this high-end integrated amplifier with a premium phono pre-amp. The result? Unmatched sound quality that captures the nuances of your entire analog music collection.
Performance Specs
Watts RMS per Channel (8-ohms) 125
Watts RMS per Channel (4-ohms) 250
Frequency Bandwidth 20-20k
THD 0.18%
Minimum Impedance 2 ohms
Signal to Noise Ratio 103
Highlights
Nº 5000 Series signature design |
EuP compliant / low-power standby |
Designed and handcrafted in the USA |

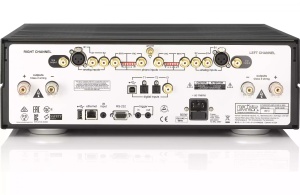

Inputs
1 x USB 2.0, 1 x coaxial S/PDIF, and 2 x optical S/PDIF |
384 kHz/32 bit PCM and DSD 11.2 MHz capability |
Bluetooth audio input including aptX HD support |
MQA full decoding on all digital inputs including asynchronous USB |
Analog Inputs: 1 x balanced XLR stereo, 2 x RCA stereo, 1 x RCA Phono (MM/MC) |
HT processor pass-thru mode |
Outputs
Line outputs: 1 x RCA stereo (variable) |
Headphone output: 1 x 1/4-inch/6.35mm jack (front panel) |
Speaker outputs: 2 pairs high-current binding posts |
Control
Ethernet (RJ45), RS-232 (DB9), 12V trigger input/output and IR input (3.5mm jack) |
Webpage setup, configuration import/export, software updates |
Included handheld IR remote control |

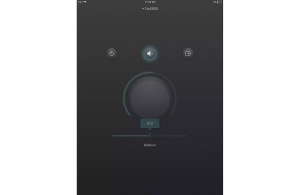

Mark Levinson Kontrol app for Android and iOS devices |
Dimensions
- Height: 154mm
- Depth: 507mm
- Width: 438mm
- Weight: 28.1kg
