Opis
Features
- Moving Magnet principle
- Coil windings made from pure silver to achieve higher quality and more dynamic playback compared with conventional MM cartridges
- Suitable for low to medium tonearm masses
- 1/2 inch mounting standard
- High trackability

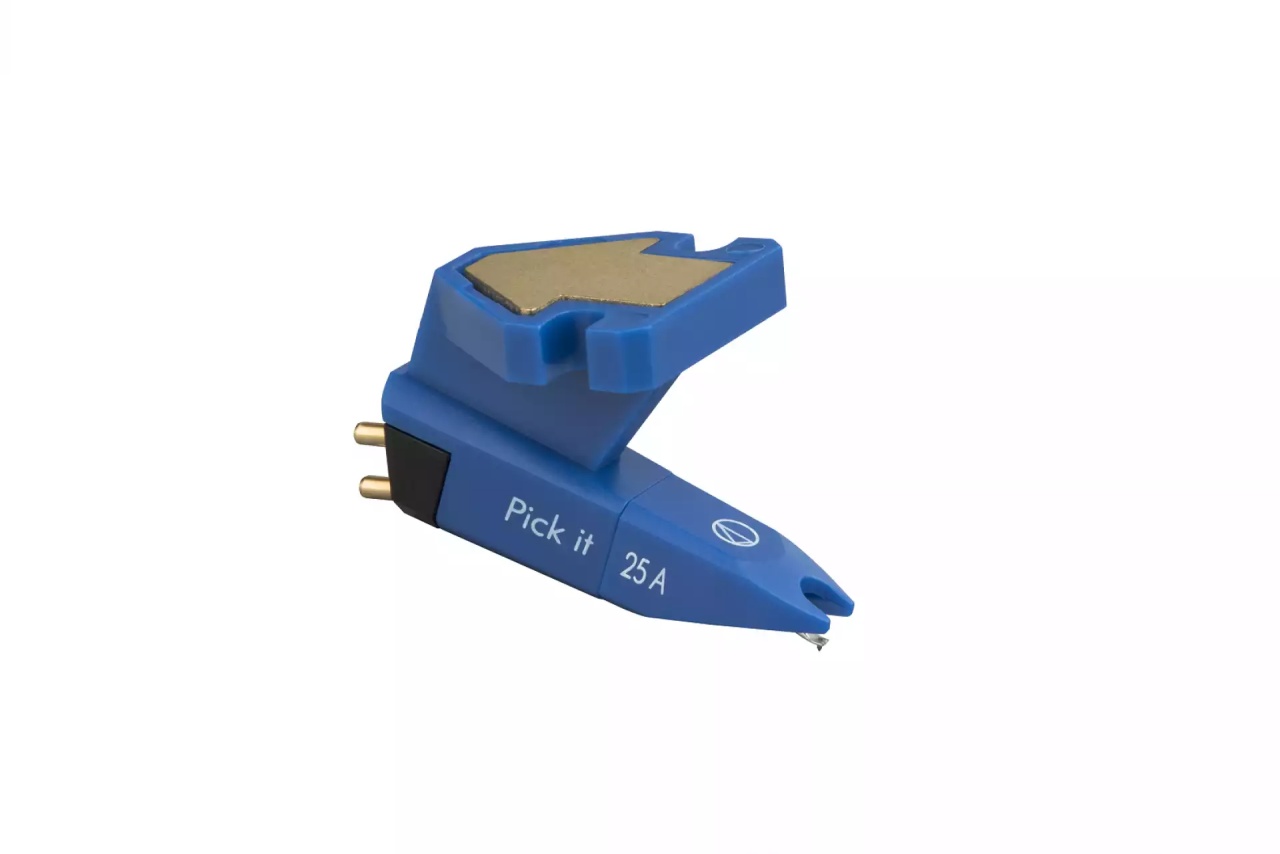

- Pick it 25A should be connected to phono MM inputs
- As with most MM cartridges, stylus can be exchanged
Technical Specifications
| Stylus type | elliptical |
| Weight | 5 g |
| Stylus tip radius | 8 x 18 µm |
| Frequency response | 20 - 24.000 Hz |
| Output voltage | 5.5 mV |
| Channel separation | >25dB @ 1kHz |
| Compliance dynamic/lateral | 25 µm/mN |
| Tracking force range | 1.25-1.75 g |
| Recommended tracking force | 1.5 g |
| Tracking angle | 20° |
| Internal inductance | 580 mH |
| Recommended load resistance | 47 kΩ |
| Recommended load capacitance | 200-600 pF |
