Prima - Five Input Choral Preamplifier

Opis

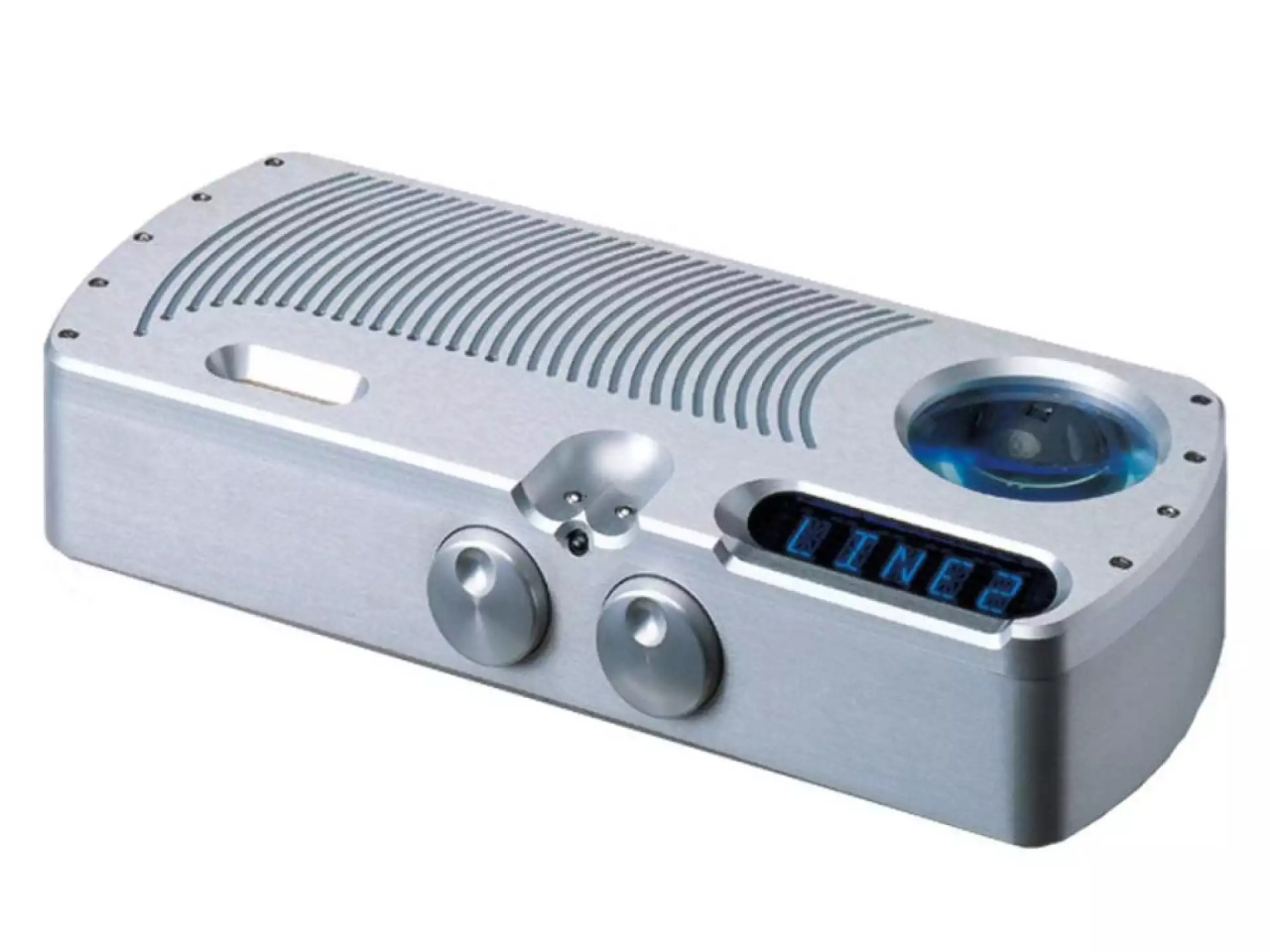

Precision-machined from solid aircraft-grade aluminium billet, the Prima offers both remote control and front panel operation. Prima’s fascia offers volume and balance controls while its push-button controls atop the unit, offer input selection and tape line selection, the latter enabling its tape outputs to be selected for recording from source components.  Further design features include a top panel display, offering input choice and volume information, plus a clever porthole which enables the internal circuit board to be seen.

The Prima also benefits from our legendary proprietary Ultra-High-Frequency power supply, which is common to all Chord amplifiers. Prima offers fully balanced circuitry throughout and useful flexibility with five inputs, four unbalanced RCA and one balanced XLR, plus a balanced XLR output and a tape output. For added versatility, Prima’s audio circuit offers six independent input gain adjustments for the five inputs and low impedance outputs.

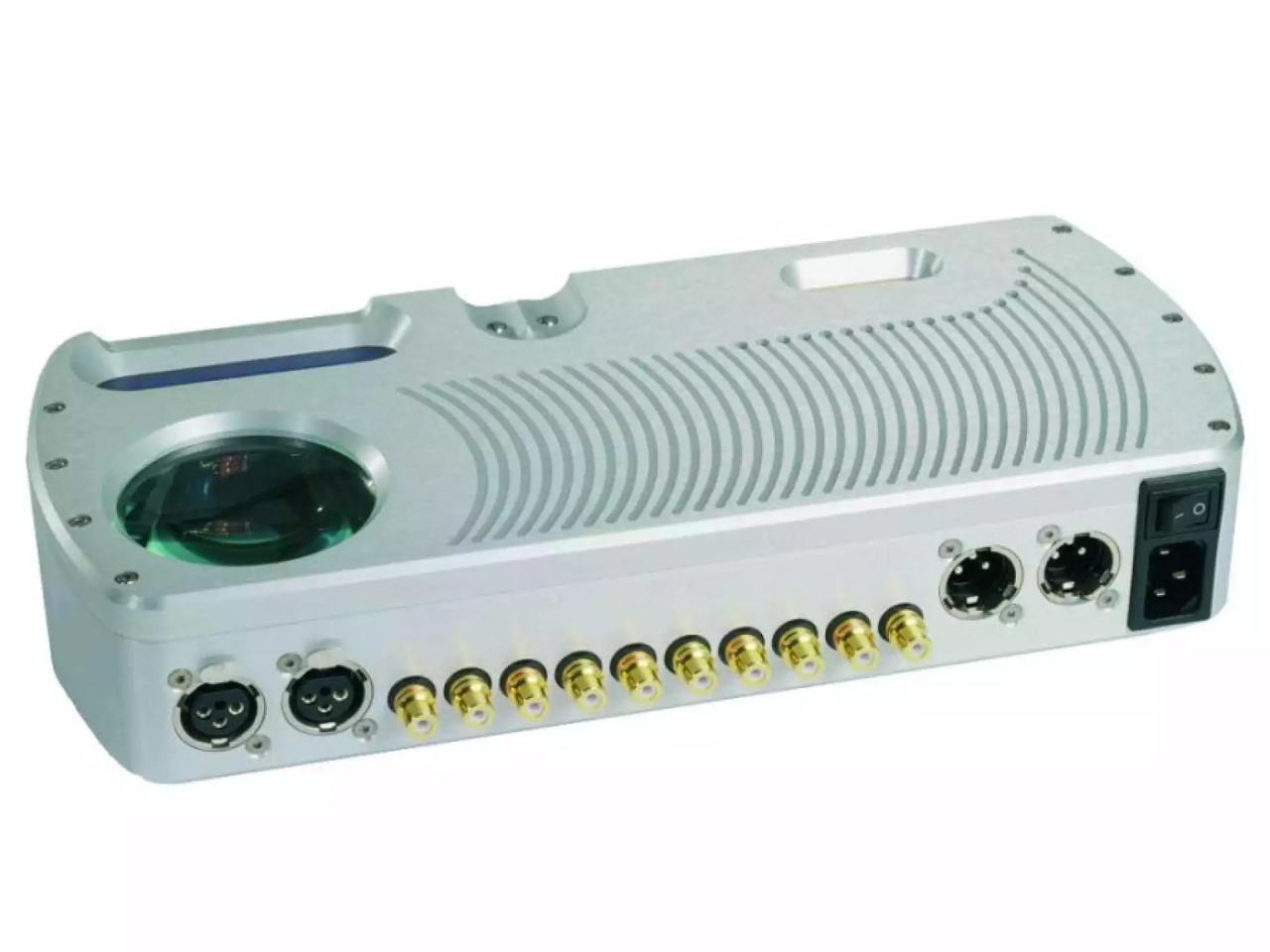

Inputs & Outputs:

5 Stereo Inputs and 1 Stereo Output

• 1x Stereo Balanced XLR Input – Main Line 1


• 4x Stereo Unbalanced RCA Inputs – Line In 2, Line In 3, Line In 4, and Line In

• 1x Stereo Balanced XLR Output – Output 1


• 1x Stereo Unbalanced RCA Tape Output – Tape Output
