JBL MA7100HP White

General Specifications

HDMI eARC

Yes

HDMI Audio Return Channel

Yes

8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)

3

HDMI 2.1 enhanced gaming features

Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)

HDR 10+, Dolby Vision

Yes , Yes

File format

File format up to 48 kHz / 320kbpsWMA

MP3 / MPEG-4 AAC

Pure Analog

Yes

EZ Set EQ

Yes

Front channel bi-amp

Yes

Digital signal processing

up to 24-bit/192kHz

Mains voltage

110 – 240V, 50–60Hz

Max. power consumption

700W

Standby power consumption

<0.5W

Audio Specifications

Channels

7.2

FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω)

125W

Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

125 W RMS

Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max)

175 W RMS

Dimensions

Dimensions incl. feet and speaker terminals (H x W x D)

5.3" x 17.0" x 15.6" (135.0mm x 432.0mm x 396.4mm)

Weight

16.4lb (7.4kg)

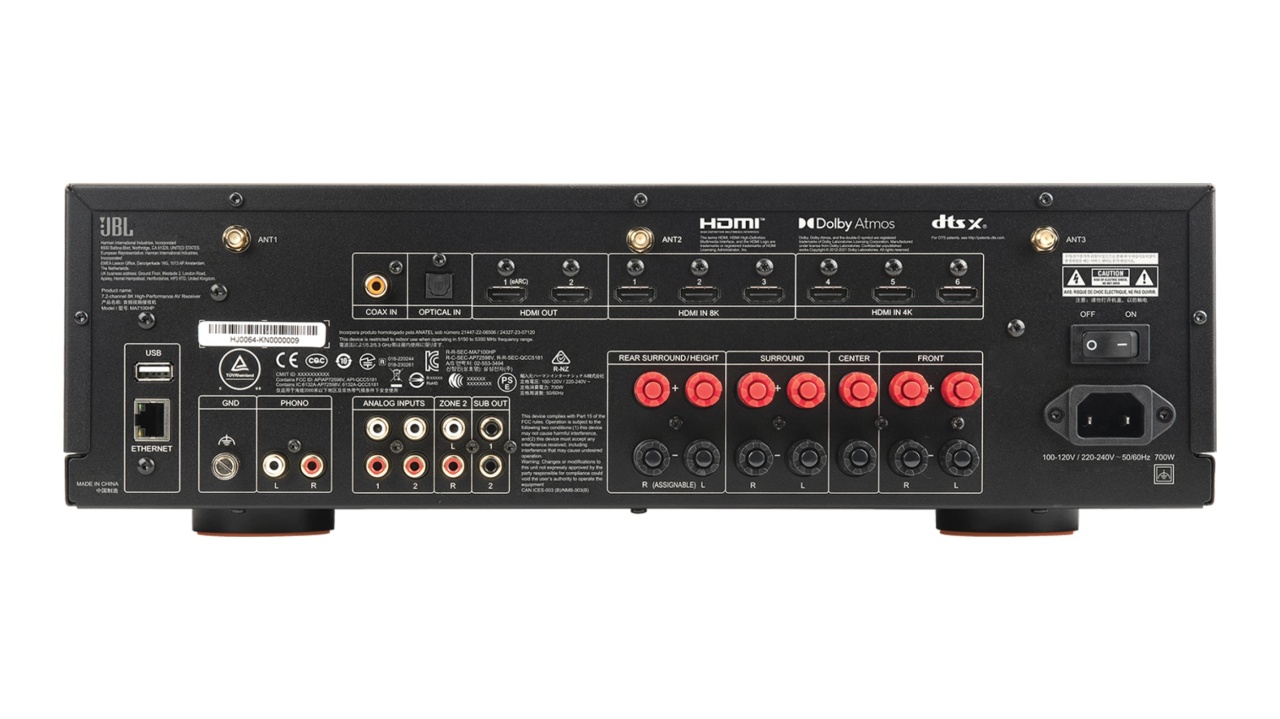

Control and Connection Specifications

HDMI Input/Output

6/ 2

Wi-Fi

Yes (2.4/5GHz)

Bluetooth receiver

Yes (v5.3, Low Energy, APTX HD, APTX Adaptive)

Bluetooth transmit

Yes

Digital Audio Input

1 Coax, 1 Optical, 1 USB

Stereo analog input

2 single-ended RCA (line level), 1 Moving Magnet Phono input + Ground

Pre-Out (single ended RCA)

Stereo Zone 2, Subwoofer 1, Subwoofer 2

Ethernet Port (RJ45)

Yes
