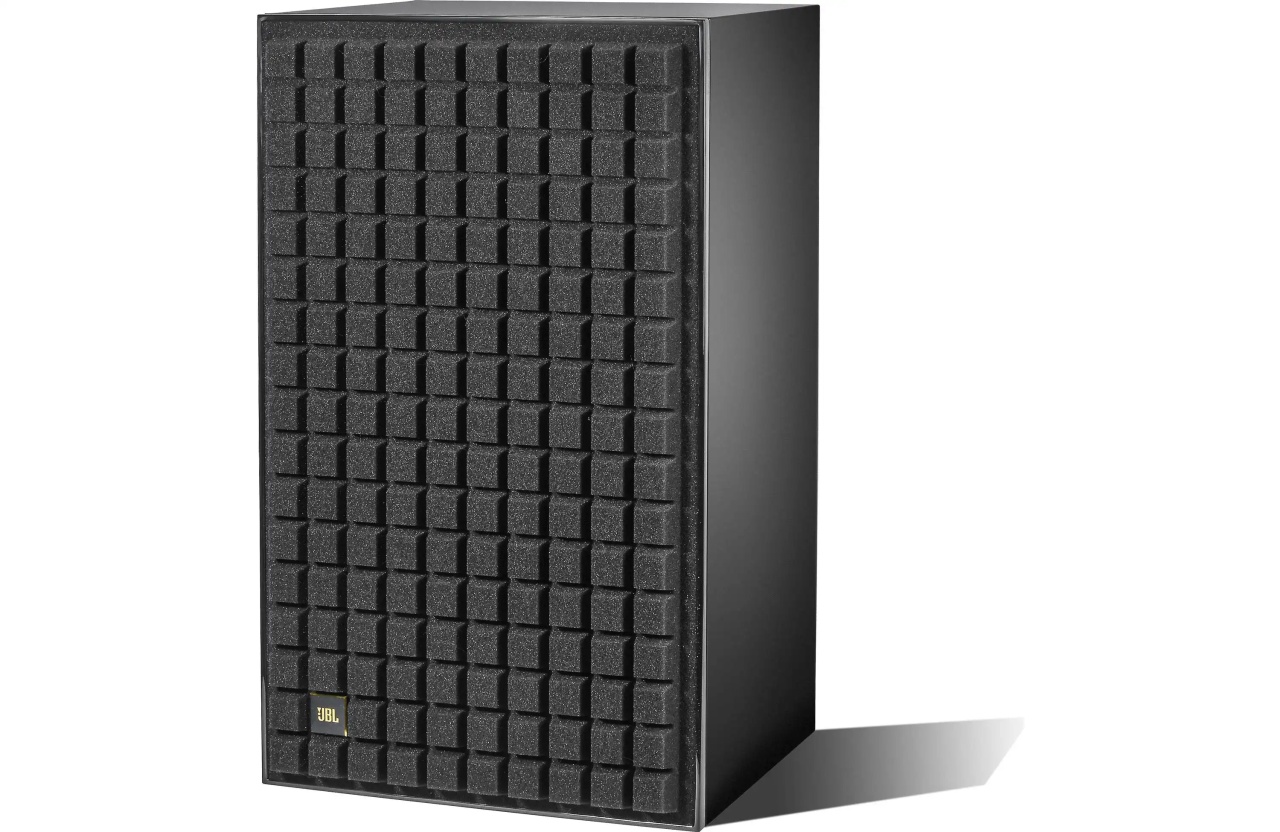

The original L100, introduced in 1970, is JBL's best-selling speaker of all time. The L100 Classic keeps the older speaker's classic 3-way design, and the classic Quadrex foam grille that's sure to bring back memories for music-loving Baby Boomers.
This 2023 limited edition version features a solid cabinet with a unique black gloss finish, along with updated crossovers and drivers that improve the speaker's lively, accurate soundstage.
Now, fair warning: this is not a small speaker, and a pair must have JBL's matching JS120 speaker stands for proper placement and an optimal listening experience. But the resulting sound is so worth it.
What's under the grille

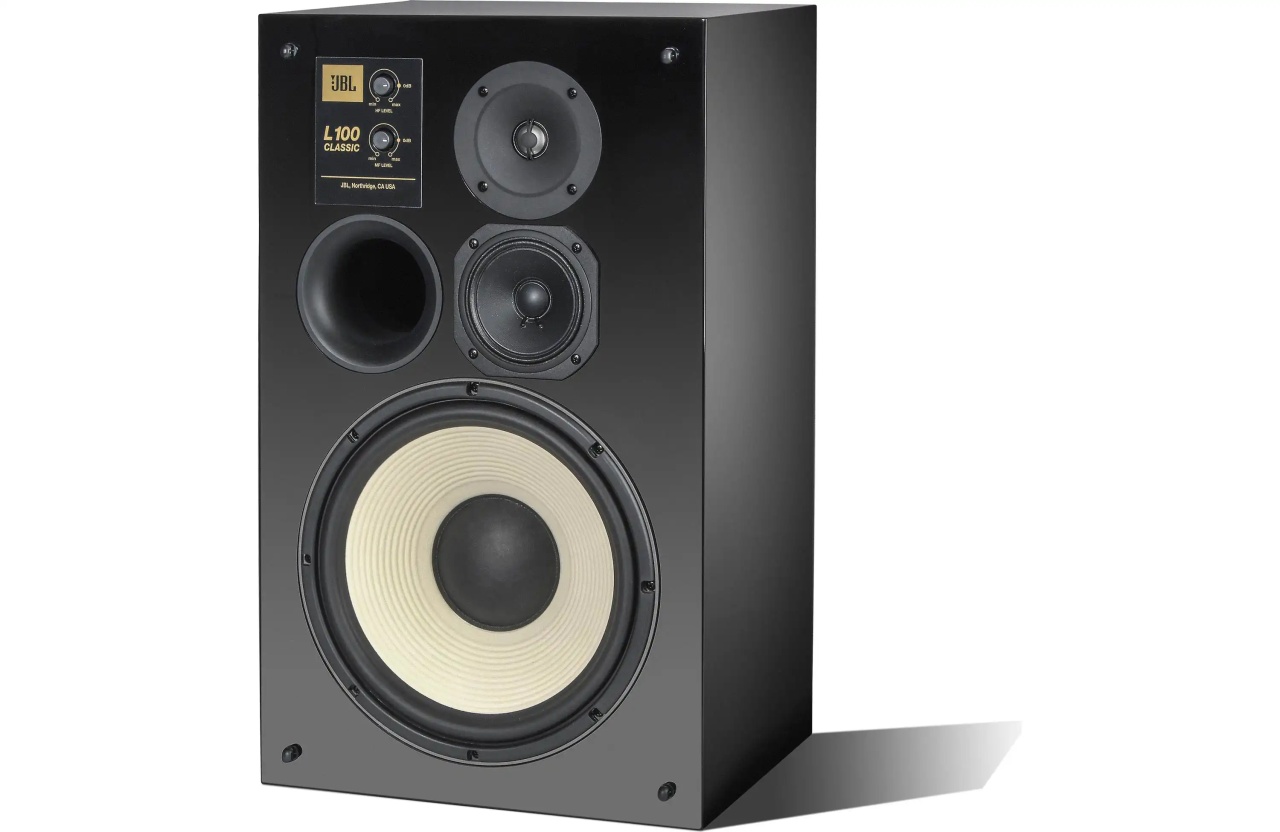

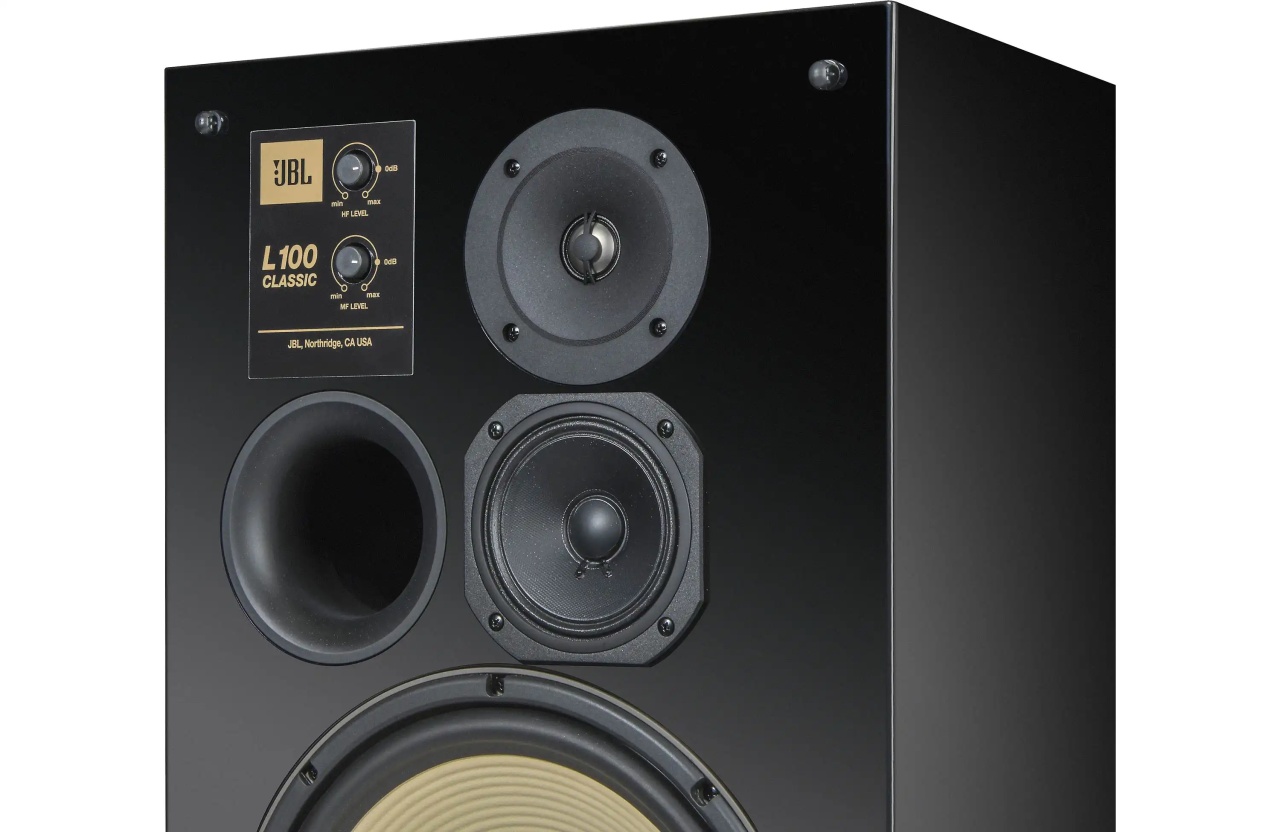

The L100's drivers and how they're positioned in the cabinet are a big part of what gives this speaker its bold, exciting sound. A white, 12" pure pulp woofer provides plenty of bass, with the help of a front-firing port. A pair of attenuator knobs — one for high frequencies, one for mids — let you fine-tune the performance of the dedicated 5-1/4" midrange and 1" titanium dome tweeter.
| Specification | |
|---|---|
| Type | 3-Way bookshelf loudspeaker pair with floor stands |
| Low Frequency Driver | 12-inch (300mm) pure pulp cone woofer (JW300SW-8) |
| Mid Frequency Driver | 5.25-inch (130mm) pure pulp cone midrange (JM125PC-8) |
| High Frequency Driver | 1-inch (25mm) Titanium dome tweeter (JT025TI2-4) |
| Recommended Amplifier Power | 25 - 200W RMS |
| Impedance | 4 Ohm |
| Loudspeaker Sensitivity | 90 dB/1W/1m |
| Frequency Response | 40 Hz – 40 kHz (-6 dB) |
| Crossover Frequencies | 450 Hz, 3.5 kHz |
| Enclosure Type | Front-ported bookshelf |
| Controls | High-frequency and Mid-frequency L-pad attenuators |
| Product Dimensions (with Stands) | 32.4-in H x 15.4-in W x 14.6-in D (823.6mm x 390.4mm x 362.4mm) each |

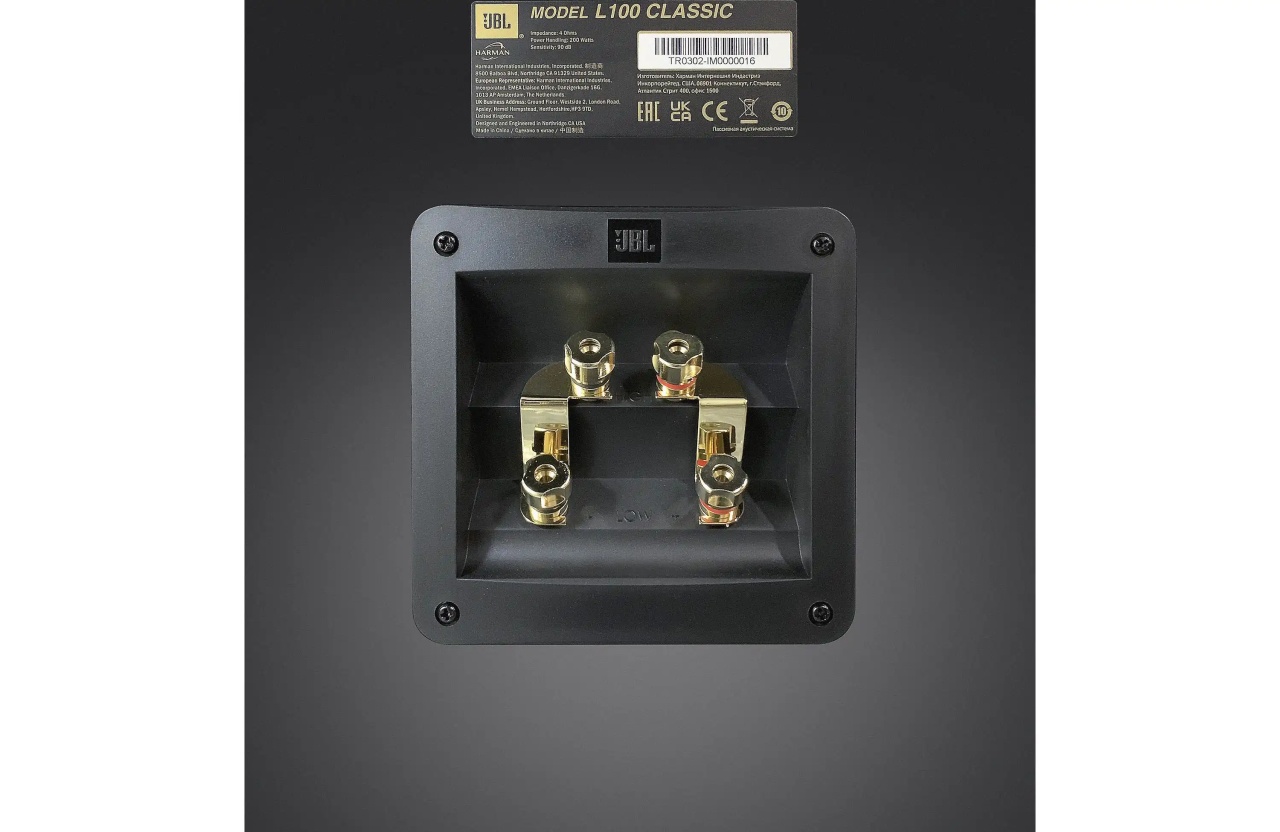

| Input Type | Dual sets of gold-plated binding posts |
