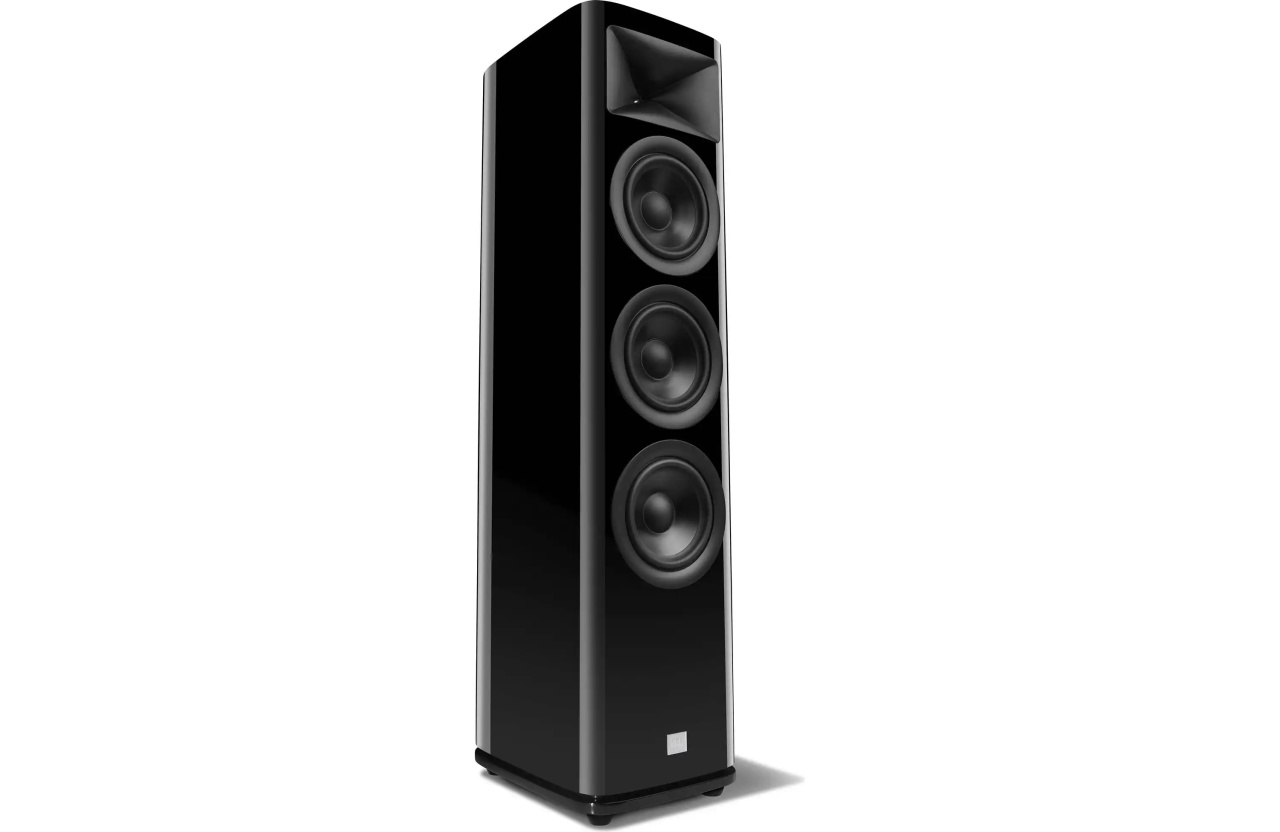

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the HDI-3600 delivers exceptional performance from a compact footprint. This floorstanding loudspeaker features a 2 ½-way design with patented High-Definition Imaging (HDI™) horn geometry, the patented 2410H-2 1-inch (25mm) compression driver, and triple 6.5-inch (165mm) Advanced Aluminum Matrix cone woofers for powerful dynamics and incredibly accurate sound reproduction.
Patented 2410H-2 1" (25mm) compression driver with High Definition Imaging ™ geometry horn.
8" (200mm) Advanced Aluminum Matrix cast-frame woofers.
| Enclosure Type |
| Bass-reflex design with rear-firing port |
| High Frequency Transducer |
| 1-inch (25mm) Teonex compression driver |
| Low / Mid Frequency Transducers |
| Three 6.5-inch (200mm) black Advanced Aluminum Matrix cone, cast frame woofers |
| Crossover Frequency |
| 900Hz, 2000Hz |
| Sensitivity (2.83V @ 1M) |
| 90dB |
| Nominal Impedance |
| 4 Ohm |
| Recommended Amplifier Power |
| 20W – 250W |
| Frequency Response |
| 38Hz – 30kHz (-6dB) |
| Dimensions (H x W x D) |
| 38.84 x 10.04 x 13.46” (986.5 x 255 x 341.9mm) |
| Net Weight |
| 61.80 lbs (28.03kg) |
