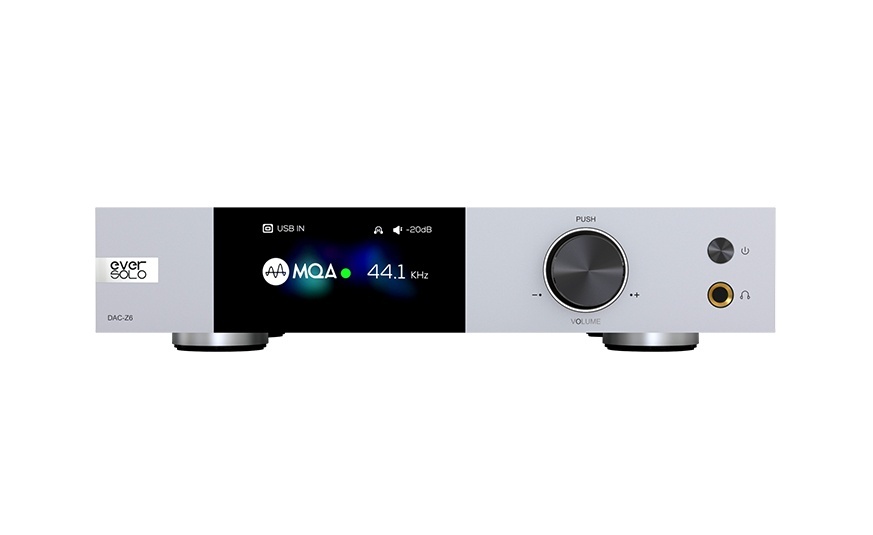

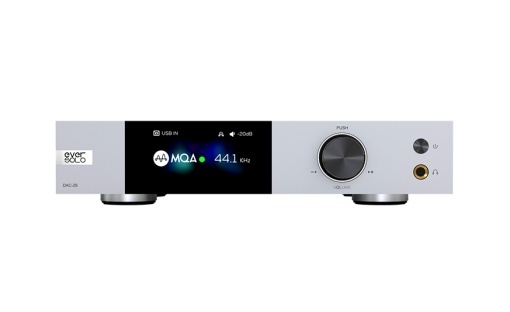

Eversolo DAC-Z6 DAC i pojačalo za slušalice
Opis
Enjoy optimal sample processing thanks to the two low-jitter dual clock oscillators. The DAC-Z6 also supports PCM768@32bit, DSD512 Native, and even MQA full decoding which lets you hear the music as the artist intended. As well as headphones, you can connect multiple audio devices via USB, coaxial, and optical inputs along with RCA and XLR outputs. With the integrated Qualcomm QCC5125 Bluetooth 5.0 module, the DAC-Z6 supports AAC, aptX, aptX LL, and aptX HD audio codecs and establishes reliable, wireless connectivity to your smart devices. You will also have total control over navigation and source selection thanks to the multifunctional dial and exclusive Eversolo Controller app. Whether it's your headphones, CD player, or speakers, the DAC-Z6 will envelop you in thrilling sound.
What's in the box?
1 x Remote control
1 x Power cable
1 x User manual
| Model | EverSolo DAC-Z6 |
|---|---|
| Display Screen | 3-inch LCD screen |
| Chassis | Aluminum Alloy |
| DAC Audio | ES 9068*2 |
| Audio Processor | XMOS XU316 |
| OPA Chip | RT 6863*6 |
| Power Supply | High quality switching power supply with low noise |
| Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, BT5.0
Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol |
| USB-B DAC Input | Compatible with Windows (7, 10)
Mac
Android and IOS Up to stereo DSD512
PCM 768KHz 32Bit
MQA |
| USB-C DAC Input | Compatible with Windows (7, 10)
Mac
Android and IOS Up to stereo DSD512
PCM 768KHz 32Bit
MQA |
| OPTICAL Audio Input | Up to stereo PCM 192Khz 24Bit
DSD64 Do
MQA |
| COAXIAL Audio Input | Up to stereo PCM 192Khz 24Bit
DSD64 Dop
MQA |

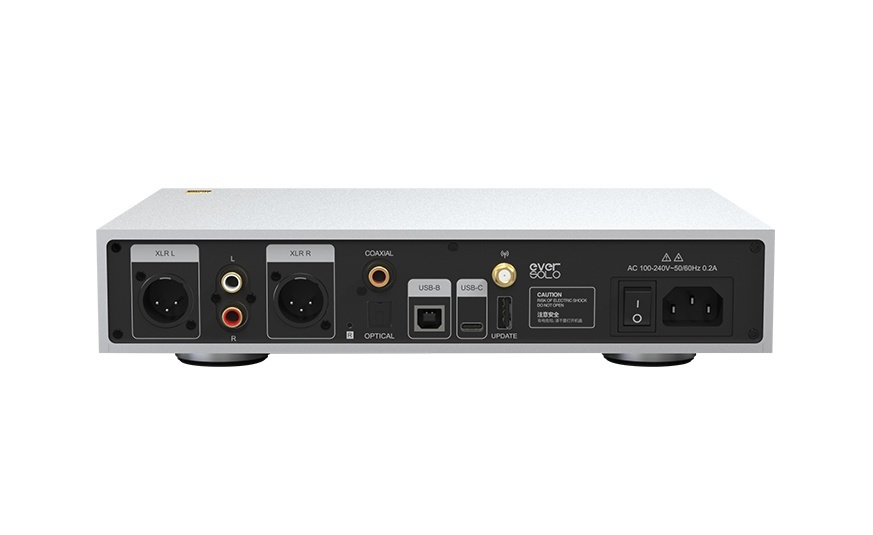

| Analog Audio Output | Preamp output: XLR(balanced)+RCA
Headphone output: 6.3mm single-ended |
| USB Port | USB2.0*1?only for firmware upgrade |
| Control Methods | Remote control
Mobile APP control
Knob control |
| Headphone Impedance | 16-300Ω (low gain mode:16-32Ω/high gain mode:32-300Ω) |
| XLR Audio Output | Output Level(Vrms): 4.1Vrms@0dBFS
THD+N@A-wt: 0.000094 @1kHz?-120dB@1kHz
THD+N@No-wt: 0.000117 @1kHz?-118dB@1kHz
Noise@No-wt: <3uVrms
SNR)@No-wt:125@1kHz
Frequency response: 20Hz-20kHz(±0.15dB)
CROSSTALK: -123dB@1kHz
DNR)@No-wt:125dB@1kHz |
| RCA Audio Output | Output Level(Vrms): 2.1Vrms@0dBFS
THD+N@A-wt: 0.000116 @1kHz(-118dB@1kHz)
THD+N@No-wt: 0.000138 @1kHz(-117dB@1kHz)
Noise@No-wt <2.5uVrms
SNR)@No-wt: 21dB@1kHz
Frequency response: 20Hz-20kHz(±0.15dB
CROSSTALK: -118dB@1kHz
DNR)@No-wt: 121dB@1kHz |
| Headphone (low gain mode) | Output Level(Vrms)?1.2Vrms@0dBFS
Max Power: 45 mW@32Ω
THD+N@A-wt: 0.00028 @1kHz(-111dB@1kHz)
THD+N@No-wt: 0.00031 @1kHz(-110dB@1kHz)
Noise@No-wt: <3.5uVrms
SNR)@No-wt: 114dB@1kHz
Frequency response: 20Hz-20kHz(±0.15dB)
DNR)@No-wt: 114dB@1kHz |
| Headphone (high gain mode) | Output Level(Vrms): 2.8Vrms@0dBFS
Max Power: 26 mW@300Ω
THD+N@A-wt: 0.00014 @1kHz(-117dB@1kHz)
THD+N@No-wt: 0.00016 @1kHz(-116dB@1kHz)
Noise@No-wt: <3.5uVrms
SNR)@No-wt: 121dB@1kHz
Frequency response: 20Hz-20kHz(±0.15dB)
DNR)@No-wt: 121dB@1kHz |
| Power Input | AC 110 240V 50/60Hz |
| Rated power | 9W |
| Product Dimensions | 270mm(W) x 187mm(D) x 50mm(H) |
