Opis

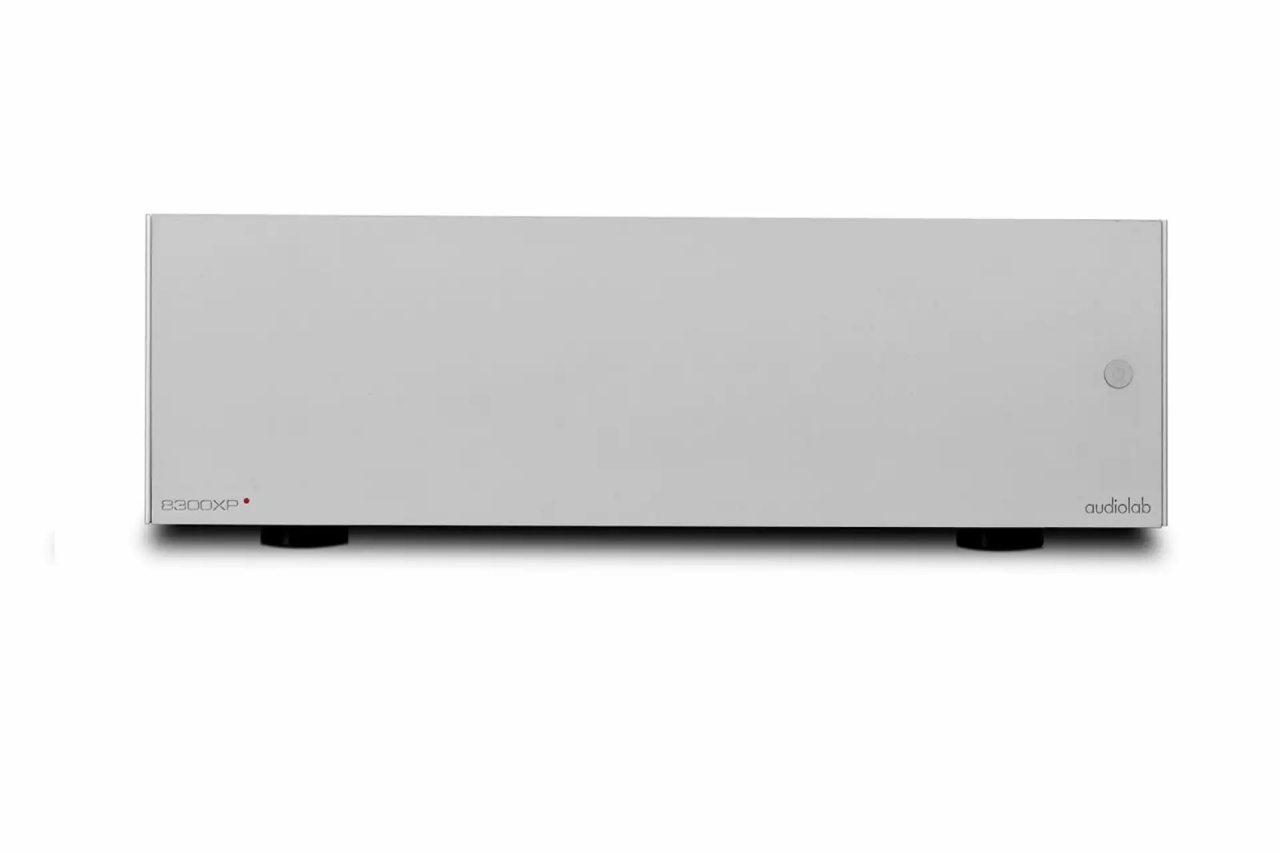

The 8300XP is a classic Audiolab power amplifier delivering a solid crisp, clean sound. Styled in Audiolab's authentic redefined aesthetics, a true descendant from a range of amplifiers revered throughout the world for their ability to perform at the highest level.

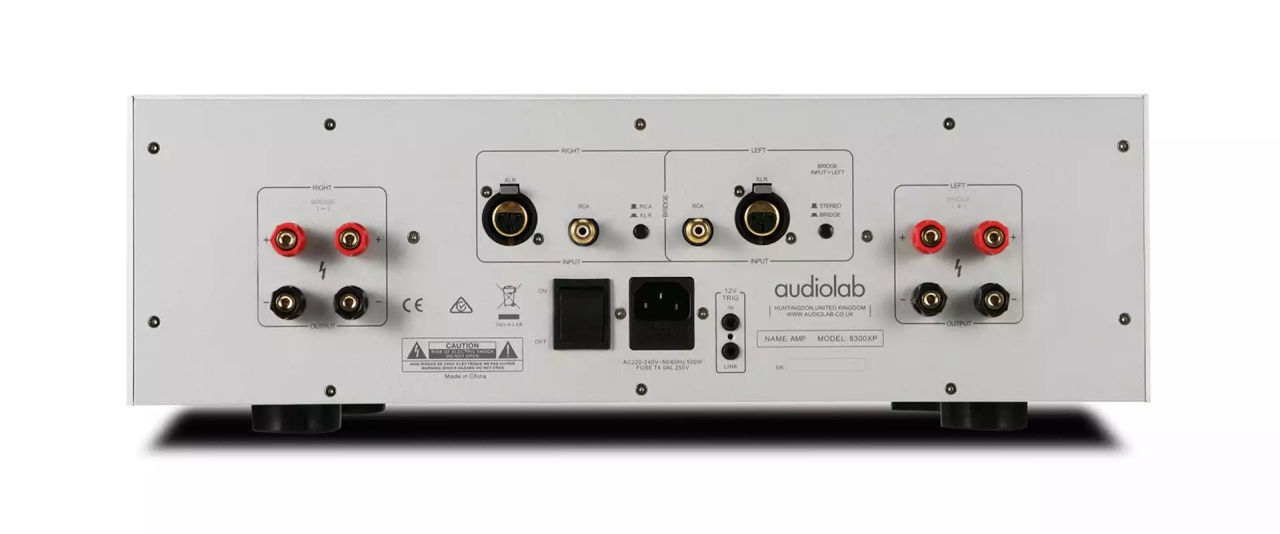

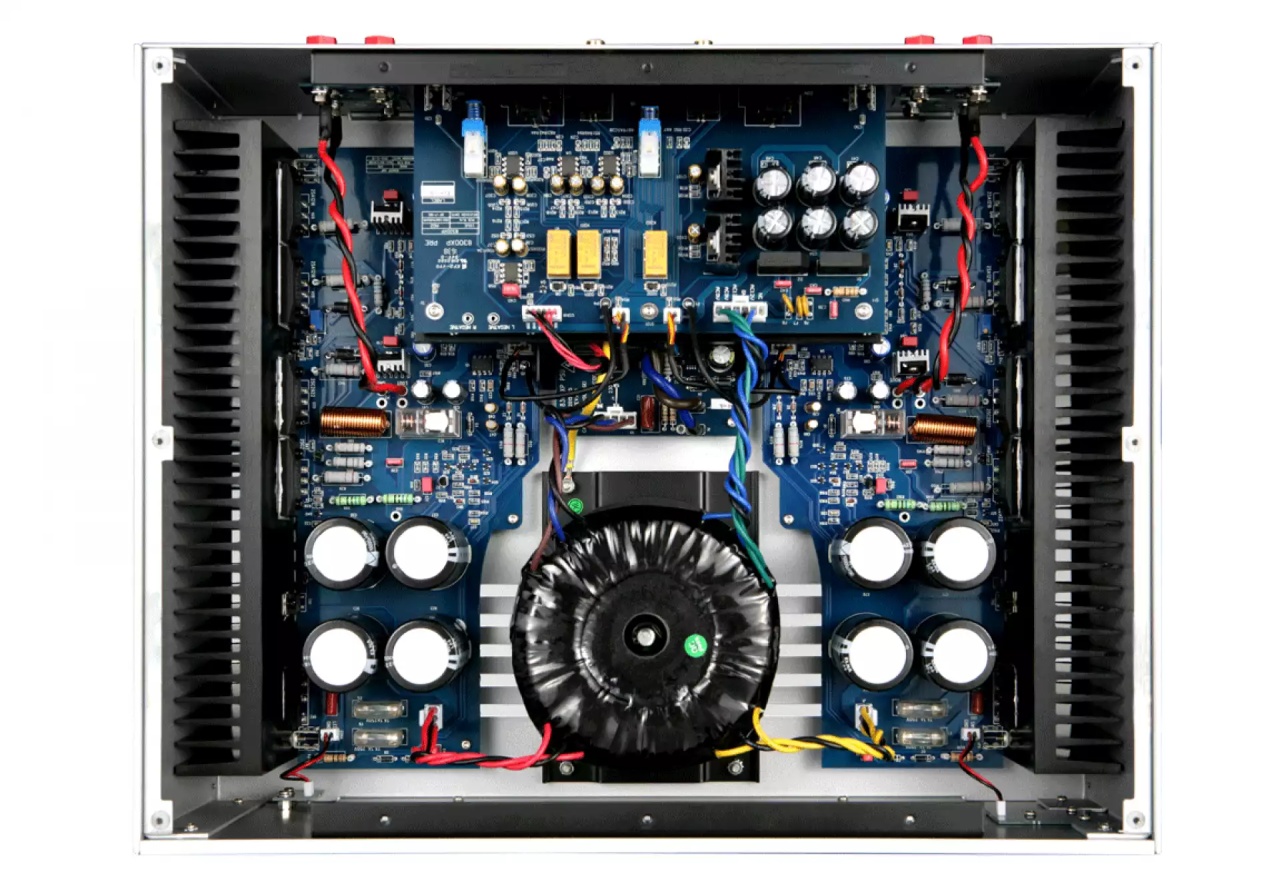

Exemplary build quality and reliability ensure that this is a power amp for all seasons, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.
Thrilling to listen to and utterly dependable, the 8300XP is a genuine audio thoroughbred - the perfect partner for audiolab's 8300CD, or peerless M-DAC range.
Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All Audiolab amplifiers are gain-matched, ensuring perfect integration with other Audiolab components.
- 140 Watts per channel in to 8 Ohms
- 230 Watts per channel in to 4 Ohms
- 12v power link
- XLR and RCA input options
| Rate power output | 140W RMS (8Ω <1% THD, 1kHZ stereo) | 230W RMS (4Ω <1% THD, 1kHZ stereo) | 480W RMS (8Ω <1% THD, 1kHZ bridge) |
| Gain | 29dB @ 1kHz (stereo) | 36dB @ 1kHz (bridge) |
| Input sensitivity | 1100mV |
| Input impedance | 15k (balanced) 10k (unbalanced) |
| Frequency response -3dB | 20Hz - 80KHz |
| +/-1db | 20Hz - 30KHz |
| Total harmonic distortion (THD) | 0.004% (20W, ref. 1kHZ) |
| Intermodulation distortion (IM) | 0.004% (20W, ref. 7kHz + 60Hz) |
| Transient inermodulation distortion (TID) | 113dB (A Weighted, ref. 140W) |
| Signal-to-noise ratio (S/N) | 140W / 113dB |
| Damping factor | 160 |
| Power Requirement | 240V ~ 50-60Hz | 230V ~ 50-60Hz | 115V ~ 50-60Hz | 100V ~ 50-60Hz |
| Dimension (mm) (WxHxD) | 444 x 149 x 367 |
| Carton Size (mm) (WxHxD) | 550 x 260 x 580 |
| Weight | 16Kg (Net) 18.5Kg (Gross) |
