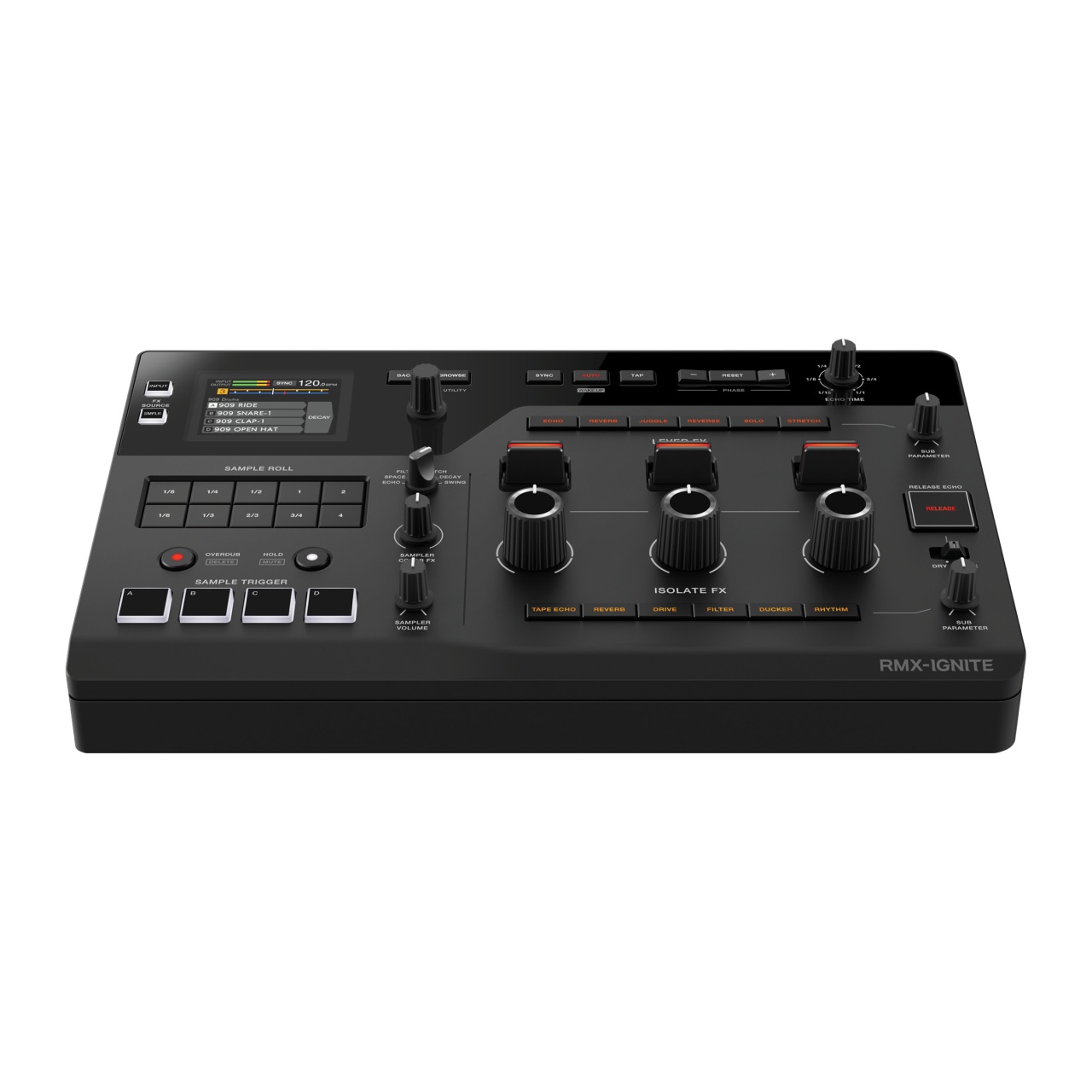

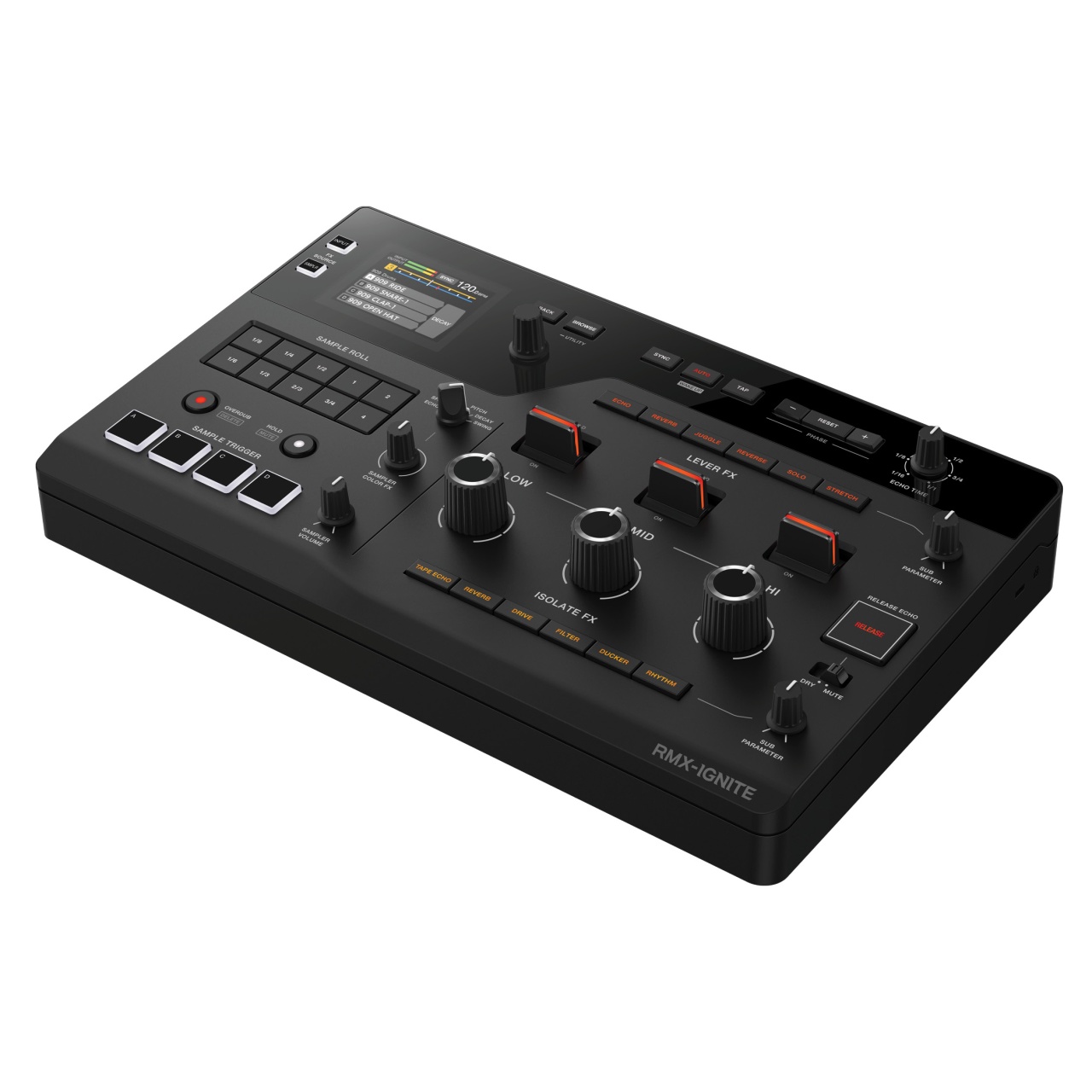

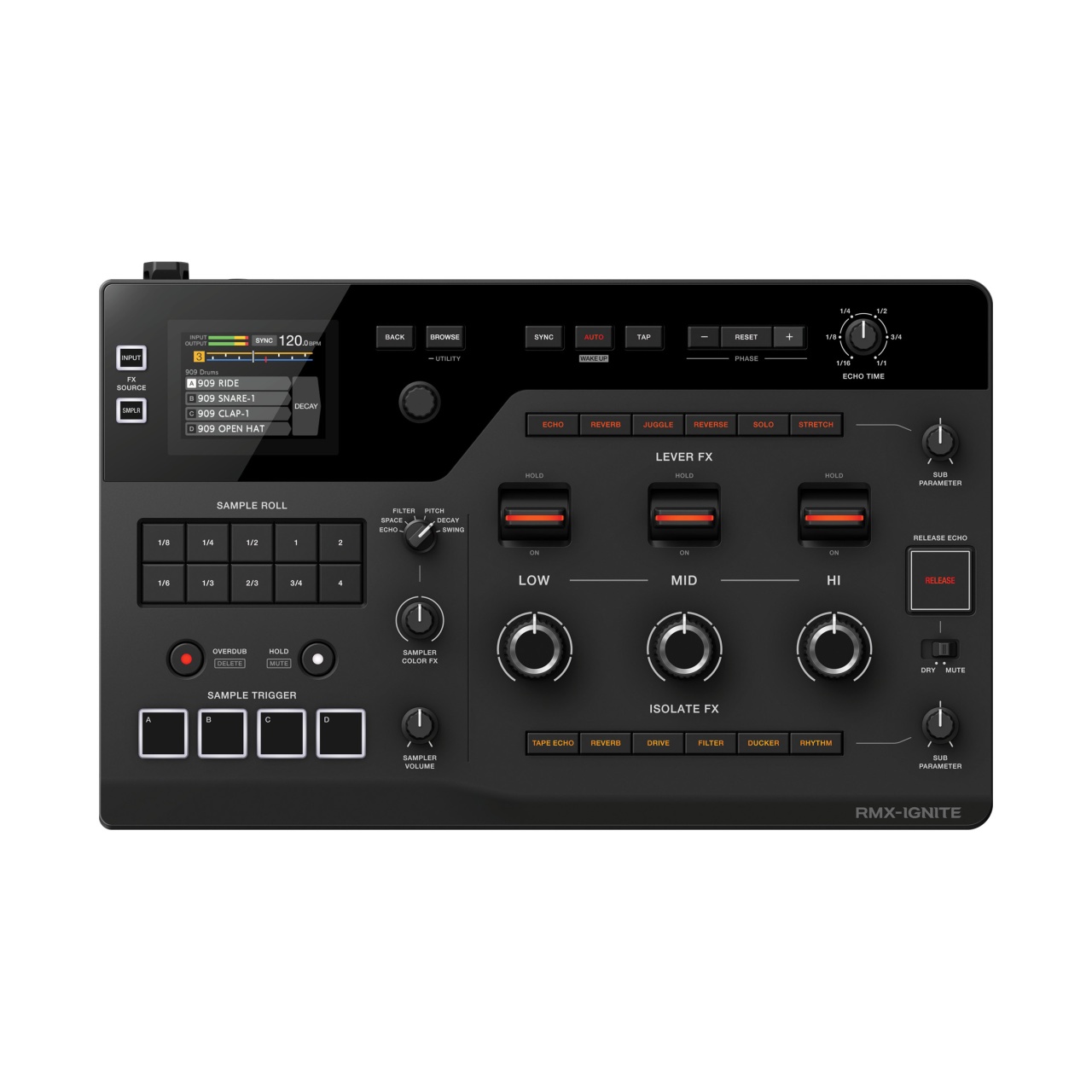

Alpha Theta RMX-IGNITE

Opis

Specifications
Power requirements: AC 100 V – 240 V, 50 Hz / 60 Hz
Power consumption: DC 15 V, 3.0 A
Power consumption (OFF): 0.3 W
Max. external dimensions (W × D × H): 340.0 × 213.3 × 72.8 mm / 13.4″ × 8.4″ × 2.9″
Main unit weight: 2.3 kg / 5.1 lbs.
Operating temperature: +5 °C – +35 °C
Operating humidity: 5% – 85% (no condensation)

Audio
Sampling rate: 96 kHz
A/D, D/A converter: 32 bit
Frequency response: 20 Hz – 40 kHz
S/N ratio (rated output, A-weighted):
• CONNECTION switch (MST): 115 dB
• CONNECTION switch (SEND/RETURN): 114 dB
• CONNECTION switch (CDJ): 108 dB
Total harmonic distortion (20 Hz – 20 kHz BW): 0.0018 %
Standard input level / Standard output level:
• CONNECTION switch (MST): +4 dBu / +4 dBu
• CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
• CONNECTION switch (CDJ): -6 dBu / -12 dBu
Input impedance: 47 kΩ
Output impedance: 680 Ω or less
Rated output level / Load impedance:
• CONNECTION switch (MST): 21 dBu / 10 kΩ
• CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
• CONNECTION switch (CDJ): 3 dBu / 10 kΩ

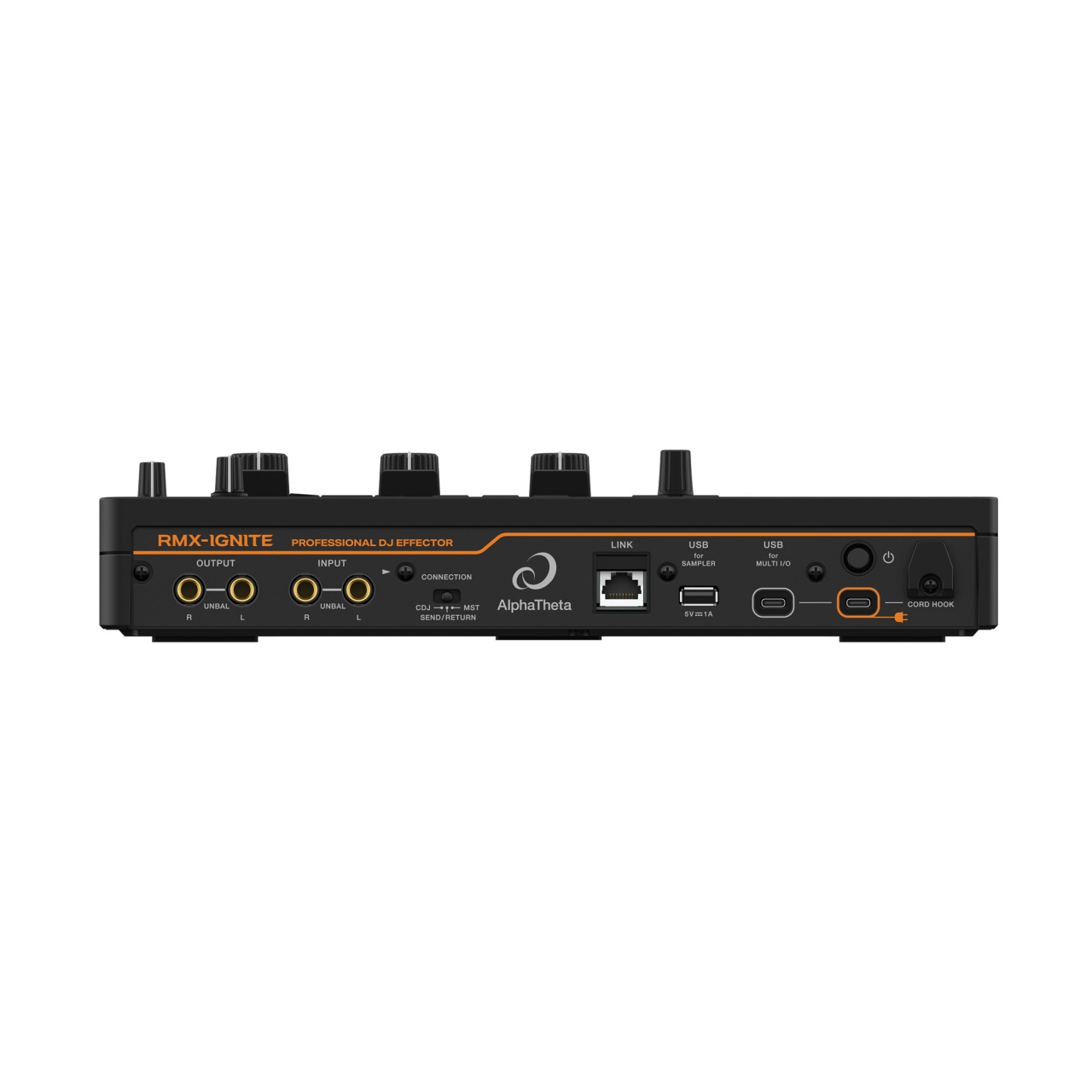

Input / Output terminals
Input: 1/4″ TS jack × 1
Output: 1/4″ TS jack × 1
USB Type-A (for SAMPLER): 1 set (Power supply : 5 V/1 A or less)
USB Type-C (for MULTI I/O, AC adapter): 2 sets
LINK: LAN (100BASE-TX) × 1

Supported file formats
WAV:
• Bit depth: 16 bit / 24 bit
• Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
AIFF:
• Bit depth: 16 bit / 24 bit
• Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
